The benefits and applications of Wave Springs in Autoinjectors and Pen Injectors

Modern drug delivery devices face evolving challenges. Designers must achieve miniaturization without sacrificing functionality, handle high-viscosity drugs (e.g., concentrated biologics) that require greater force, ensure precise flow control for accurate dosing, and even incorporate dual-chamber systems for on-the-spot reconstitution of lyophilized drugs.

Autoinjectors and pen injectors are at the forefront of these advances, packing complex mechanics into handheld devices. Springs are a critical component in meeting these challenges – especially wave springs, which offer unique benefits in compact, high-performance injection mechanisms.

What Are Wave Springs and Why They Outperform Traditional Springs

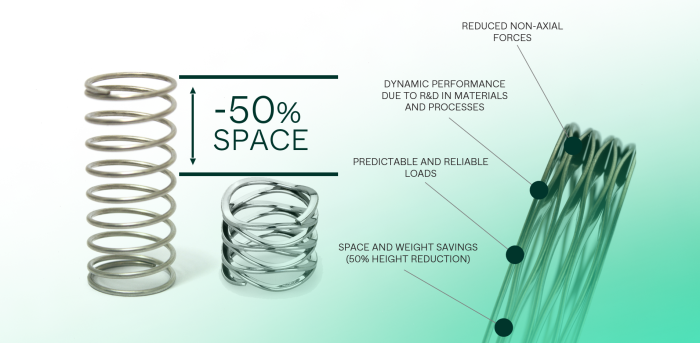

A wave spring is a type of compression spring made from flat metal wire formed into a wavy ribbon-like coil. Unlike a standard helical coil spring, a wave spring’s crested shape allows it to compress with much less height. In fact, wave springs can deliver the same force and deflection as a conventional coil spring while occupying up to 50% less axial space. This space-saving design enables engineers to create slimmer, lighter devices without compromising performance.

Beyond space savings, wave springs provide other advantages over traditional round-wire springs. Their flat, multi-wave profile means they compress purely axially (with no significant torsion or buckling), reducing side loads and friction on surrounding parts. This yields a precise and repeatable force output – the force-versus-compression behavior is highly linear and predictable over the spring’s working range. In practical terms, a wave spring offers an accurate, consistent load in a smaller package, improving reliability. Wave springs also eliminate the twisting forces that can cause wear in coil springs, enhancing long-term durability. Together, these attributes make Wave Springs an ideal choice for high-precision, compact mechanisms like autoinjectors and pen injectors.

Uses of Wave Springs in Autoinjectors and Pen Injectors

Wave springs play several critical roles in the design and function of autoinjector and pen injector devices:

• Push and Force: The primary injection mechanism relies on spring force. Wave springs deliver the necessary thrust to drive the needle insertion and drug injection, providing sufficient force even for highly viscous medications. Their compact size allows the inclusion of powerful springs in small autoinjector bodies.
• Flow Control: The spring’s characteristics help regulate the injection speed and flow rate. By selecting spring stiffness and travel, engineers ensure the drug is delivered at a controlled rate for accurate dosing and minimal patient discomfort. In essence, the wave spring’s smooth force output contributes to steady fluid flow during injection.
• Compensation of Tolerances: In assembly, wave springs can compensate for internal manufacturing tolerances. Their linear compression curve allows them to absorb dimensional variations between parts while maintaining the required force. This ensures consistent device-to-device performance, even with slight gaps or internal stack-up differences.
• Reload & Reset in Reusable Pens: Many reusable pen injectors use a spring that must be reset (re-compressed) after each dose. Wave springs are well-suited here as they can be designed for easy resetting and long fatigue life. They store the energy for each injection and then reliably return to position when the pen is reloaded, allowing the device to be used again and again.

Advantages of Using Wave Springs in Autoinjectors and Pen Injectors

Incorporating wave springs into autoinjector and pen injector designs yields numerous benefits:

• Space-Saving Design: Wave springs enable a smaller device size by providing the same spring force in roughly 50% less height than a traditional coil spring. This compact form factor is crucial for handheld injectors, where every millimeter counts in achieving ergonomic, pocket-sized designs.
• Precise and Consistent Force: Wave springs deliver consistent force across their deflection range. The predictable, linear spring rate means the injector delivers the intended force for needle insertion and drug delivery every time, improving dose accuracy and reliability.
• Linear & Repeatable Behavior (Critical for Biologics): Unlike some springs that have variable or nonlinear force profiles, wave springs exhibit a linear, repeatable behavior under compression. This repeatability is essential for sensitive biologic drugs, where a steady application of force ensures gentle, controlled delivery without sudden pressure spikes that could damage the molecule or cause patient discomfort.
• Controlled Energy Storage and Release: Wave springs act as efficient energy storage devices – they can be compressed and hold potential energy safely over time, then release it in a controlled manner when triggered. This controlled release drives the injector’s plunger at the desired speed, helping achieve the targeted injection time and volume. The result is a more controlled and reliable drug administration process.
• Durability and Fatigue Resistance: Typically made from high-grade spring steels (such as stainless steel or special alloys), wave springs are designed for durability and fatigue resistance. They maintain their spring force over repeated compression cycles or extended storage periods without deforming or losing strength. This longevity ensures that an autoinjector will perform as expected even after extended shelf life or multiple uses (for reusable devices). In short, wave springs contribute to the injector’s safety and dependability by preserving mechanical performance over time.

By addressing the needs for compactness, precision, and reliability, wave springs have become an enabling technology in advanced drug delivery devices. From epinephrine autoinjectors to insulin pens, these innovative springs help designers meet the challenges of modern therapeutics – delivering powerful performance in a small package, with the consistency that patients and healthcare providers demand.
