The power spring: the quiet motor inside a multidose DPI Inhaler

By Iker Ibisate Product Engineer at RPK Technological Center and RPK Medical, and Álvaro García Nograro, Key Account Manager at RPK Medical

A Multidose Dry Power Inhaler (DPI) has to do something deceptively hard. Every single dose -the first and sixtieth- needs to be metered and presented the same way, no matter how the patient handles the device. Some people slide the cover fast, some slow, some barely past the click. The mechanism inside can´t care. And the component that makes that possible is the power spring.

What the power spring actually does

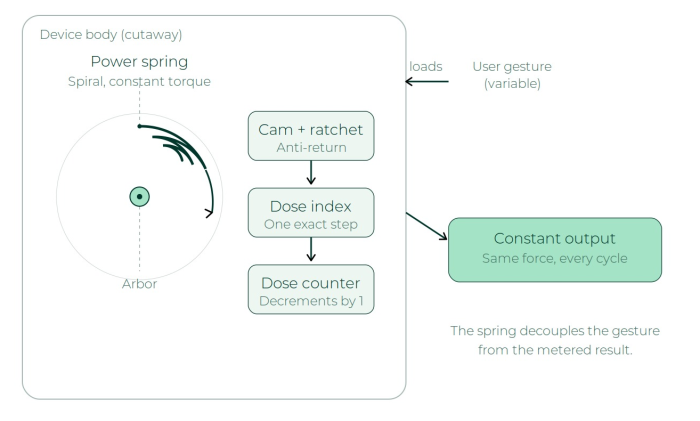

When the patient opens the device -sliding cover, twisting a grip, whatever the format uses- the motion doesn´t directly advance the dose. Instead, it loads the power spring. The spring stores that energy and then releases it in a controlled way through a cam-and-ratchet train to do the real work: indexing the dose mechanism one exact step, driving the metering or peel action, and moving the counter down by one.

So the patient supplies the gesture. The power spring supplies the force. That separation is the whole point. It decouples the variable human input from the mechanical output, and the output has to stay constant for the metered dose to be presented right every time.

A power spring is a flat strip of high-grade steel coiled on an arbor, the same family as a clock spring. It´s built to deliver a near-constant torque as it unwinds, not the rising-then-falling force you´d get from a simple coil. That constant torque behavior is exactly what a metering mechanism needs.

Why it´s a fatigue and stability problem, not just a force problem

Here´s where it gets demanding. The spring must deliver the same torque on cycle 1 and cycle 60, with no meaningful relaxation over the device's life and shelf storage. A DPI can sit loaded in a drawer for weeks between doses, and it still has to perform. So the spring can´t take a set, can´t creep, can´t drift.

Multiply that by the fact that these devices ship in the tens of millions, and the tolerances stop being a suggestion. Material selection, heat treatment, edge condition, and process control all become critical, because a small batch-to-batch variation in the spring turns directly into a dosing inconsistency the patient never sees but very much feels.

One clarification: the power spring is not the only spring in the device. It usually includes smaller return springs, retention elements, and anti-return ratchet features. The power spring is specifically the energy-storage element that drives the dosing advance. The other just positions and holds.

Why this matters for drug delivery

A metered dose DPI lives or dies on the consistency of that indexing step. If the dose mechanism doesn´t advance exactly the right amount, the dose isn´t presented correctly under the airflow path, the counter desynchronizes, and dose accuracy suffers. The power spring converts inconsistent human input into the repeatable mechanical output the device depends on. It´s a small metal part doing a job that the whole device is built around.

That´s the kind of precision component RPK Medical engineers: springs and metal parts that must perform identically, cycle after cycle, across the full life of a drug delivery device.
