Ensuring stable flow control in modern autoinjectors and pen injectors

Stable flow control: A critical parameter in next-generation drug delivery

One of the defining challenges for current and upcoming autoinjectors and pen injectors is maintaining a stable, predictable flow rate throughout the entire injection cycle. As biologics become more viscous, as wearable and smart systems demand highly consistent profiles, and as device architectures evolve toward compact formats—including double-chamber designs—the need for controlled, smooth, and reproducible delivery has never been greater.

A deviation in flow, whether a sudden initial spike, an unintended slowdown mid-stroke, or an insufficient final push, can compromise the therapeutic intention of the drug. Incomplete delivery may result in sub-therapeutic dosing, while irregular flow profiles can cause pain, discomfort, bruising, or loss of patient trust. Beyond clinical concerns, regulatory agencies increasingly scrutinize a device's capacity to reproduce the same injection profile across units, environments, and patient conditions.

The technical and clinical complexity behind flow control

Achieving stable flow control is far from trivial. Inside the device, internal pressure fluctuations occur due to the formulation's viscosity, subtle temperature changes—such as the rise caused by contact with the patient's skin—or variations in the plunger's sliding tolerance. These factors evolve dynamically throughout the injection, creating a constantly shifting mechanical landscape.

At the same time, autoinjectors and pen systems are trending toward more compact geometries, particularly with the introduction of double-chamber devices that must accommodate internal barriers, reconstitution systems, or sequential delivery mechanisms. This reduced space limits the integration of active flow regulators such as mechanical pumps, micro-actuators, or electronic components.

From a regulatory standpoint, global standards increasingly require high levels of precision and reproducibility in the flow profile. In programmable or wearable subcutaneous systems, where drug delivery may occur at a defined rate over several seconds or minutes, any instability—such as a jetting effect at the start or a hesitation during administration—can affect both patient comfort and clinical confidence.

RPK Medical's mechanical approach to flow stability

In the context of these constraints, RPK Medical develops purely mechanical solutions that stabilize the flow profile without enlarging the device or introducing electronic subsystems.

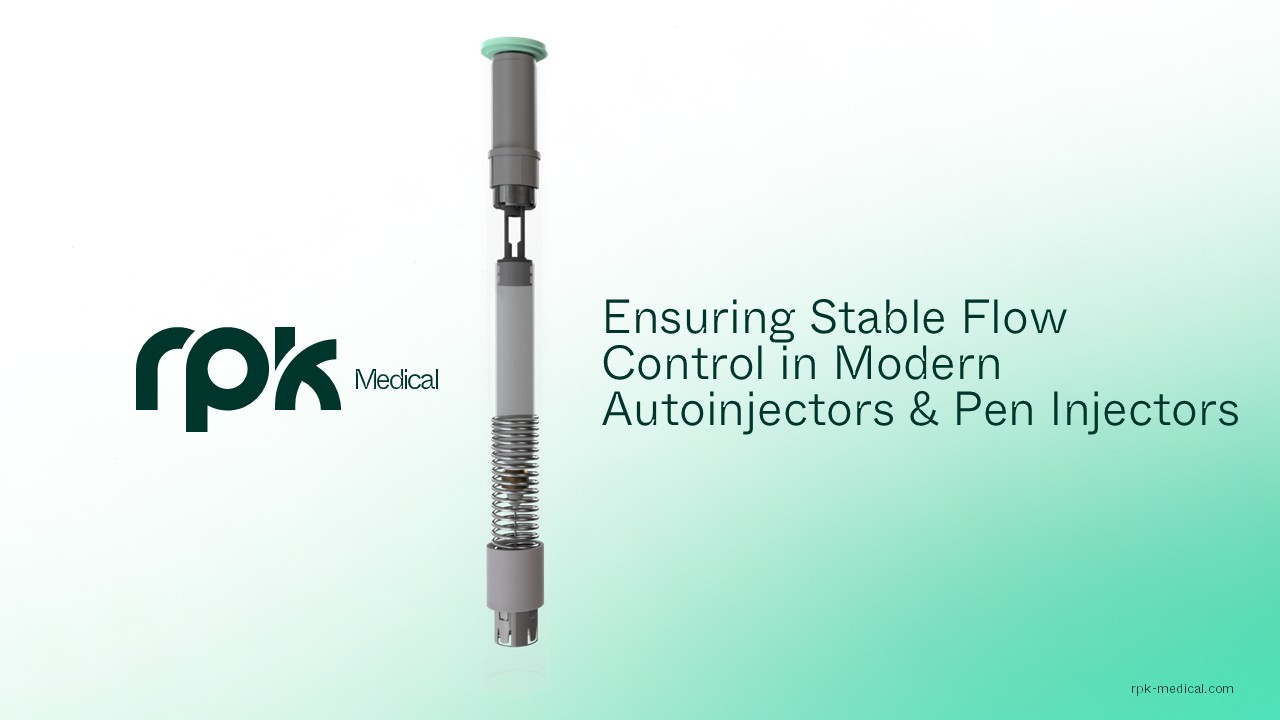

A key contribution is the design of profiled-load springs, engineered through simulation, to deliver nearly constant force over the entire stroke. By adjusting coil pitch, diameter, material properties, and specific heat treatments, these springs can compensate for internal pressure variations as the injection progresses. The result is smoother energy transmission to the plunger, helping minimize both early spikes and late-stage flow reductions.

In parallel, precision-stamped metal components can be integrated into the fluid pathway or plunger mechanism to act as passive flow restrictors. These small, calibrated parts generate a defined mechanical resistance, functioning similarly to a valve or an engineered micro-channel. Their role is to dampen pressure fluctuations and standardize the drug's exit velocity—without electronics, batteries, or increased complexity.

RPK Medical also collaborates in the development of mechanisms that mechanically replicate active control functions typically attributed to pumps or digital systems. These solutions include progressive mechanical braking, specialized plunger geometries, and hybrid configurations combining springs and stamped elements. Such mechanisms are particularly well-suited to disposable autoinjectors that must remain reliable, compact, and cost-efficient while delivering precise, repeatable performance.

As pharmaceutical formulations become more demanding and device architectures continue to shrink, ensuring stable, predictable flow control is essential for therapeutic success and patient comfort. Through engineered springs and precision metal components, RPK Medical offers a robust mechanical pathway to achieving consistent drug delivery in modern autoinjectors, pen injectors, and double-chamber systems—without sacrificing compactness, reliability, or regulatory compliance.
